Connecting Power

To connect power, connect a single-node ztC Edge system to a single power supply, or configure a dual-node ztC Edge system with redundant power supplies connected to separate sources. You can optionally use site uninterruptible power supplies (UPS), as described below.

After connecting power, return to Deploying the System.

UPS (Optional)

The following illustrations show how to connect one or two optional UPS units to a dual-node ztC Edge system. For an illustration of how to connect a single-node system to a UPS, see the node0 connections under Dual UPS.

Note: Stratus recommends that you use two UPS units connected to separate and independent power sources. With two power sources, the system continues to receive power in the event that one power source fails.

Product Support and Downloads ztC Edge Support ztC Edge Downloads Phone: (US Toll-Free) 866-763-1813 Phone: (International) 602-852-3094	About Stratus U.S. Operations 5 Mill and Main Place Suite 500 Maynard, MA 01754-2660 978-461-7000 Worldwide Office Locations Contact Stratus
Product Documentation (PDF Format) ztC Edge User's Guide ztC Edge 100i/110i Systems: Deploying a Dual-Node System (R012Z) ztC Edge 100i/110i Systems: Deploying a Single-Node System (R014Z) ztC Edge 100i/110i Systems: Adding a Node (R015Z) ztC Edge 100i/110i Systems: Replacing a Node (R013Z)	About Help Help created at 9:38 PM on 2/25/2026. Notice and Copyrights

Connecting Power

UPS (Optional)

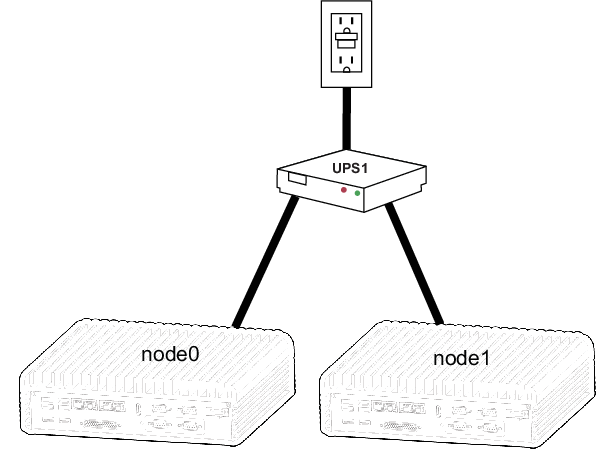

Single UPS:

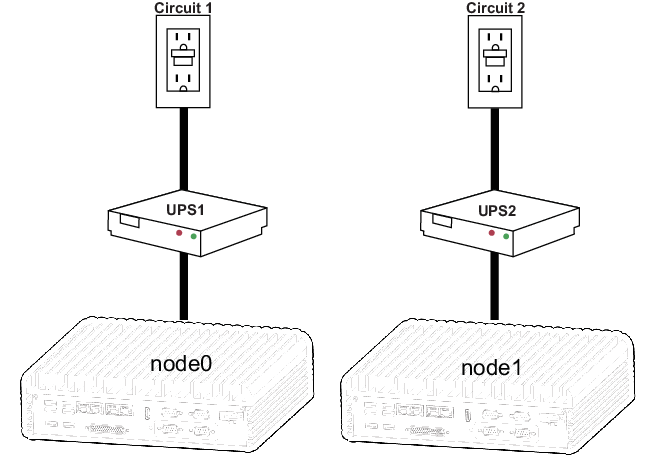

Dual UPS:
